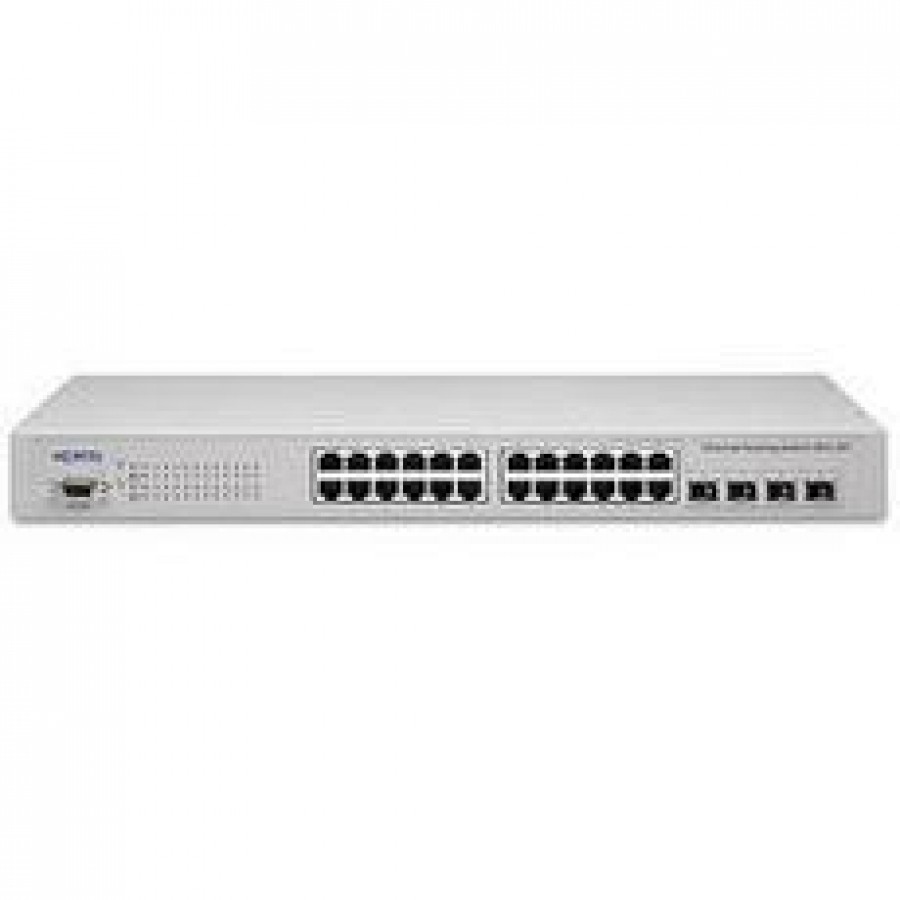

Nortel AL1001E08 Ethernet Routing Switch 3510-24T with 24 10/100/1000-Ports Plus 4x Fiber Mini-GBIC Ports

Ethernet Routing Switch 3510-24T is a 24 port 10/100/1000 Mbps Layer 3 routing switch featuring high-speed uplinks, easy configuration and web-based management from a web browser. Designed for the requirements of small to medium-sized businesses and branch offices, it delivers a highly affordable LAN solution that offers high performance, is easy to use, and offers investment protection.

Input voltage (rms): 100 to 240 VAC at 50 to 60 Hz, Addressing: 48-bit MAC address, Frame length: 64 to 1518 bytes (IEEE 802.1Q Untagged), 64 to 1,522 bytes (IEEE 802.1Q Tagged), Jumbo frame support: Up to 9,216 bytes, Multi-Link Trunks: Six trunks, four members per trunk, VLANs: 256 port-based or protocol-based VLANs Tagging option, Multiple Spanning Tree Groups: Up to eight STGs The Ethernet Routing Switch 3510 supports the following SFP GBICs: 1000BASE-SX: Uses short wavelength 850 nm MTRJ or LC type fiber optic connectors to connect devices over multimode (275m, 62.5um core or 350m, 50.0um core) fiber optic cable. 1000BASE-LX:Uses long wavelength 1300nm duplex LC type fiber optic connector to connect devices over single mode (10km, 9um core) fiber optic cable. 1000BASE-CWDM:Uses long wavelength 1470, 1490, 1510, 1530, 1350, 1570, 1590, 1610nm LC type fiber optic connector to connect devices over single mode (40km, 9um core or 70km, 9um core) fiber optic cable.

Manufacturer: Nortel Networks Limited
Manufacturer Part Number: AL1001E08
Brand Name: Nortel
Product Name: 3510-24T Ethernet Routing Switch
Product Type: Layer 3 Switch
Total Number of Network Ports: 24
Management Port: Yes
Number of Network (RJ-45) Ports: 24
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Layer Supported: 3
Manageable: Yes
Management: Network Management software includes Java Device Manager, CLI (Command Line Interface), and Web-based management, SNMP, RMON, Telnet
MTBF: 335000 Hour
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Power Source: Power Supply
Form Factor: Rack-mountable
Height: 1.8"
Width: 17.3"
Depth: 8.2"
Weight (Approximate): 9.92 lb

This Nortel AL1001E08 Ethernet Routing Switch 3510-24T with 24 10/100/1000-Ports Plus 4x Fiber Mini-GBIC Ports is brand new, never opened, and contains all original packaging and documentation.

Every new Nortel AL1001E08 for sale is fully guaranteed by our 90-day warranty, and may be additionally covered by the original manufacturer's warranty. Please feel free to contact us regarding our inventory of new, used, and refurbished Nortel network equipment, or if you have any additional questions regarding this AL1001E08 Ethernet Routing Switch 3510-24T with 24 10/100/1000-Ports Plus 4x Fiber Mini-GBIC Ports.
